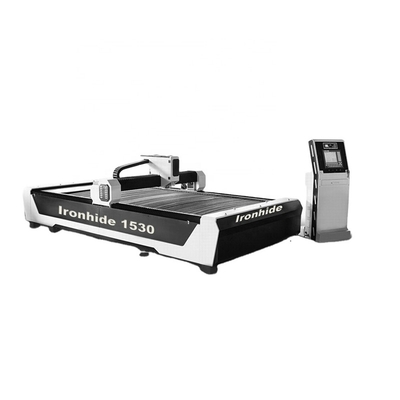

Building Material Shops Table Type CNC Plasma Cutting Machine Sheet Metal Cutter 1530

1 Set
MOQ
$5,999.00(>=1 Sets)
Prix
Building Material Shops Table Type CNC Plasma Cutting Machine Sheet Metal Cutter 1530
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Dimensions: 1500x3000
Motor Type: SERVO MOTOR
Condition: New
Model Number: Ironhide 1530
Voltage: 220V 50Hz
Rated Power: 20KW
Dimension(L*W*H): 3500*2000*1200MM
Weight (KG): 1600 KG
Warranty: 1 Year
Key Selling Points: Competitive Price
Applicable Industries: Building Material Shops, Manufacturing Plant, Farms, Retail
Showroom Location: Saudi Arabia, Mexico
Marketing Type: Ordinary Product
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Bearing, Pump, Gear, Motor, PLC, Pressure vessel, Engine, Other
Machine name: Ironhide 1530
Control system: F2300A
Software: Fastcam Software
Color: Yellow Black Customized
Cutting material: Metal Stainless Steel Carbon Steel
Cutting speed: 0-20000mm/min
Plasma cutting thickness: Plasma Power Source Capacity)
Working area: 1500mm*3000mm
Height control: Automatical THC Height Controller
OEM: YES
After-sales Service Provided: Video technical support, Online support, Free spare parts
After Warranty Service: Video technical support, Online support, Spare parts
Local Service Location: Saudi Arabia, Mexico
Certification: CE
Informations de base
Certification: CE
Model Number: Ironhide 1530
Conditions de paiement et expédition
Packaging Details: wooden case 4300x2270x1600 mm case Gross weight1600KG
Supply Ability: 15 Set/Sets per Month
Description de produit
Product Overview
FyeBoon Plasma Metal Cutting MaTable Style CNC Plasma Cutterchine with CE FyeBoon Plasma Metal Cutting Machine with CE Plasma Metal Cutting 1530 CNC Plasma Cutting Machine Sheet Metal Cutter
NEW IRONHIDE 1530
CNC PLASMA CUTTING MACHINE
1. The machine adopts the Laser-like structure, higher precision screw and linear guide, smooth transmission. 2. Bed and beam, the table are using the overall welding structure .
3. X, Y axis are imported from Servo Driver, stable and durable performance. To ensure that the machine Cutting acceleration.
Main Feature
1
Triple Your Efficiency: Servo Motor and Gearbox for 20000mm/min Speed
2
Larger Cutting Area: Fabricate 1500*3000mm
3
Equipped with Plasma
4
Synchronous Belt for higher cutting speed
5
Suitable software: FastCAM+(Professional Ver.)
6
Torch Height Control :Arc Voltage Auto THC with Anti-Collision
FyeBoon Plasma Metal Cutting Machine with CE FyeBoTable Style CNC Plasma Cutteron Plasma Metal Cutting Machine with 1530 CNC Plasma Cutting Machine Sheet Metal Cutter
IRONHIDE PLASMA CUTTING MACHINE
Effective Cutting Area
1500*3000mm/
Customized
Input Voltage
220V 50Hz

Cutting Thickness
Plasma: depend on plasma power
Power Supply
20KW
LCD Dimension
10.4 Inches color display
Plasma Power Supply
According to USER'S Requirement
Plasma THC
Fangling F1628
Driver
Mixed Servo Motor Driver
Controller
Fangling F2300A
Cutting Speed
0~2000mm/mim
Accuracy
+/- 0.5mm
Program Software
FastCAM software
Weight (KG)
1600KG
Cutting Material
Carbon/Stainless Steel/Aluminum
Dimension (L*W*H）
4300x 2270x 1600
Cutting Accuracy
+/- 0.5mm ( JB/T5102-1999)
Color
Yellow/Customized
FyeBoon Plasma Metal Cutting Machine with CE FyeBoon Plasma Metal CTable Style CNC Plasma Cutterutting Machine with CE 1530 CNC Plasma Cutting Machine Sheet Metal Cutter


CUTTING SAMPLE
Packing & Delivery
Our Company
Recommend Products
FyeBoon Plasma Metal Cutting Machine with CE FyeBoon Plasma Metal high speed cutting machine1530 CNC Plasma Cutting Machine Sheet Metal Cutter
Contact
FyeBoon Plasma Metal Cutting Machine with CE FyeBoon Plasma Metal high speed cutting machine1530 CNC Plasma Cutting Machine Sheet Metal Cutter
Payment & Service

File Service

Instruction Manual
Installation Video
Video Teaching

Visual Service

Remotely diagnose problems
Reducing downtime and cost to send a field technician

Training

Immense cumulative experience: machine operation, programming, and cutting, CAD/CAM software
Exhibition & Feedback
FAQ
Q1. How can I choose a suitable CNC cutting machine?
Just tell us the max cutting area, the material and its thickness, we can help you choose the best CNC cutting machine.

Q2. What shall we do if we don't know how to operate the machine after purchase?
We have detailed installation and operating instructions attached. It is very simple and we also have a 24-hour telephone and email support. And our engineers are also available for machinery service overseas but not for free.

Q3. What can we do if the machine has a problem?
24 hours timely response by email and phone calls or engineers overseas service but not for free.

Q4. What other things also need after we bought the machine?
For Flame Cutting: you just need to access to oxygen and fuel gas;
For Plasma Cutting: you need a plasma power source and air compressor. You can buy the plasma power supply by yourself or buy together with the cutting machine from us, it's optional. If you buy it from us, we will connect the wires of plasma power source and CNC cutting machine together, then it is more convenient to use.

Q5. Can I change input voltage to my local voltage and frequency?
Yes, we can supply frequency and voltage according to your local standard. Such as 110V/220V/380V/415V/440V, and 50HZ/60HZ.
