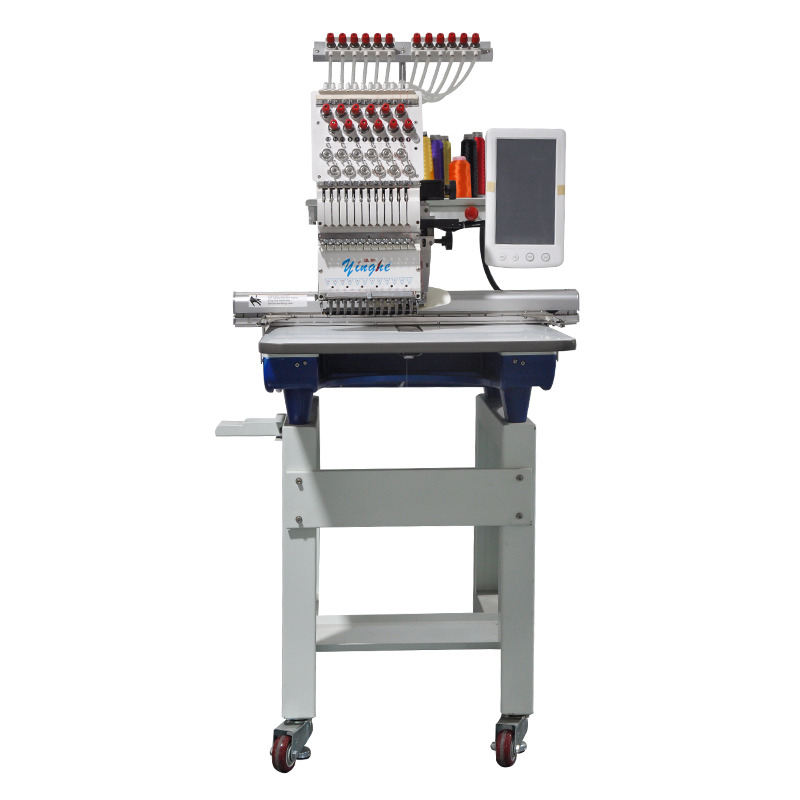

2021 Single Head Flat/Cap/Garment Embroidery Machine Embroidery Machine

Single head embroidery machine

I. Main features

1. Suitable for flat embroidery, cap embroidery and finished garments embroidery, like T-shirt

2. Automatic thread trimmer

3. Maximum speed 1200 SPM

4. 270 degree Wide cap frame unit

5. Color LCD display showing real time stitching

6. USB input port

7. Automatic color change

8. Thread break detection

9. Pre-sew design trace capable

10. Memory size 2, 000, 000 stitches

11. Emergency stop

12. Electricity: 110V/60Hz or 220V/50Hz available

13. Built-in bobbin winder

14. Keeping current data or work when emergency stop or power off

15. Mending function. (back and skip stitches under controller)

16. Switch of Cap/ flat embroidery mode eliminating hitting the frame.

17. USB port with fast data transmission and good compatibility

II. Compact control panel

"1. Color LCD display showing real time stitching

2. Manual, Semi-auto, Auto Color Change

3. Function keys including Menu, Speed up and slow

4. Multi languages available like English, French, Spanish etc."

"5. Frame-moving keys, Manual Trimming

6. DOT ket to return to 100 degree

7. Start, Stop, and emergency Stop

8. Embroidery Status (Page Up/Page Down), USB Input,

9. Parameter Settings, Clear, ESC, Enter, etc.

10. Numeric keys for selection of needles"

III. Embroidey frames included

1. Flat embroidery frame: 360mm*510mm (13" x 20")
2. Cap embroidery: 60*260mm (2''x10'')
3. Garment embroidery:

1) Square frame: 300mm x 300mm (11.80" x 11.80")
2) Round frame:

dismater190mm (7.50")

dismater 150mm (5.90")

dismater120mm (4.70")

dismater 90mm (3.50")
